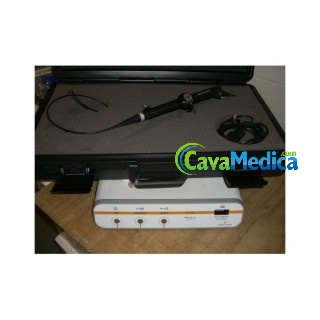

ACMI DUR-D Invisio Digital Flexible Ureteroscope joined CystoNephroscopes of flexible distal sensors (ICN) systems and megapixel cameras on Invisio ™ Platform ® digital technology, high-tech medical visualization for a total "see and treat" solutions .

The flexible digital Ureteroscope Invisio (DUR-D) incorporates numerous patented proven sustainable, market-leading flexible DRIVE ® series ureteroscopes characteristics. It is also the first device using exclusive, world's smallest ultra-miniature 1 mm Complementary Metal Oxide Semiconductor (CMOS) distal sensor technology Gyrus ACMI has been developed and announced in 2005 and is manufactured by ACMI Corporation, a subsidiary of Gyrus Group PLC.

Instead of a separate camera head with focus and white balance problems adapter and a compact light source to connect and adjust the DUR-D ureteroscope uses a distal CMOS video sensor and built-in LED for lighting. It is a true "plug and play" for durability and superior image quality flexible ureteroscope never possible with fiber optic systems.

The DUR-D ureteroscope offers superior color, contrast and resolution for Endourologists for the diagnosis and treatment of urinary tract and kidneys, and has also been approved for use as choledochoscope flexible.

FEATURES

• Distal tip diameter: 2.7 mm (8.7 Fr)
• Shaft diameter: 3.1 mm (9.3 Fr)
• 65 cm: length of work
• 1.3 mm (3.6 Fr) working channel
• Primary deviation:
• Up: 250 °
• Down: 250 °
• Minimum bend radius: 8.0 mm
• Field of view: 80 ° minimum
• Focus automatic: 2-40 mm
